DJI Matrice 3D
DJI Matrice 3D
Couldn't load pickup availability

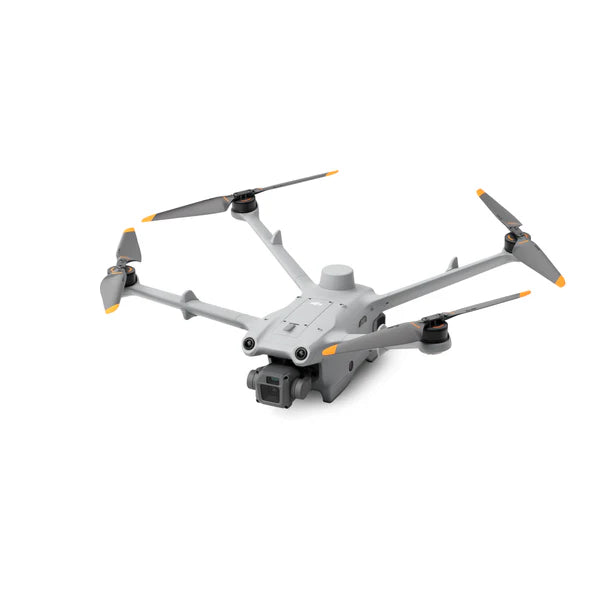

The DJI Matrice 3D (M3D) is a highly advanced drone designed for integration with the DJI Dock 2, making it ideal for high-precision mapping tasks. This aircraft cannot operate as a standalone unit without the DJI Dock 2.
Camera Specifications
| Wide-Angle Camera | |
|---|---|
| Sensor | 4/3 CMOS |
| Focal Length | 24mm format equivalent |
| Resolution | 20MP effective pixels |
| Shutter | Mechanical |
| Tele Camera | |
| Sensor | 1/2-inch CMOS |
| Focal Length | 162mm format equivalent |
| Resolution | 12MP effective pixels |
Performance Features
| IP54 Rating | Dustproof and waterproof, ensuring durability in various environments |
| Maximum Flight Time | Up to 50 minutes, allowing for extended operations |
| Obstacle Sensing System | 6-directional sensing for enhanced safety and navigation |
| Effective Operating Radius | Up to 10 km, providing a wide operational range |
| Battery Life | Supports up to 400 battery cycles |
| Integrated RTK Module | Provides ±3cm positioning accuracy for precise navigation and mapping |
| Quick Takeoff | |
|---|---|
| Accurate RTH | Uses dual RTK antennas for rapid Return to Home (RTH) location |
| Propeller Inspection | Completes inspection and takes off in as short as 45 seconds |
| Quick Charging | |
| Charging Time | Charges from 20% to 90% in just 32 minutes |
| Dual-Camera Monitoring | |
| Internal and External Cameras | Real-time monitoring of weather and aircraft conditions |
Cloud-Based Operations
DJI FlightHub 2 enhances cloud-based operations by generating high-precision 3D models from flight data, which can be annotated, measured, and downloaded for detailed analysis. Visual flight route editing using these 3D models improves planning accuracy and efficiency. The AI Spot-Check feature allows the aircraft to automatically adjust its camera angle to consistently capture the same area across multiple flights. FlyTo tasks use the precise 3D models to plan optimal routes for urgent missions, ensuring efficient and safe navigation. Additionally, remote control of flight and gimbal angles is possible via DJI FlightHub 2 or third-party cloud platforms. The system's omnidirectional obstacle sensing and automatic bypass functions further increase the success rate of automatic flight tasks.
Expandability and Integration
The DJI Dock 2 supports extensive expandability and integration, enhancing its functionality through third-party payloads like loudspeakers, spotlights, and parachutes connected via the E-Port and E-Port Lite. It features an edge computing expansion interface for pre-processing media files, improving operational efficiency. The dock allows for private deployment with a Cloud API, enabling customized management systems or connections to third-party cloud platforms. DJI FlightHub 2's FlightHub Sync function provides flexible management of operational data and easy integration with third-party cloud systems. Additionally, DJI TerraAPI integrates Terra's mapping capabilities into dock management systems, supporting automated 2D/3D reconstruction and customized photo mapping workflows.
