Matrice 350 RTK adopts DJI O3 Enterprise Transmission, which supports triple-channel 1080p HD live feeds, and a max transmission distance of 20 km. Both the aircraft and the remote controller have a four-antenna transceiver system, which can intelligently select the two optimal antennas to transmit signals, while the four antennas receive signals simultaneously. In this way, anti-interference capabilities are significantly improved, and transmission stability is optimized.

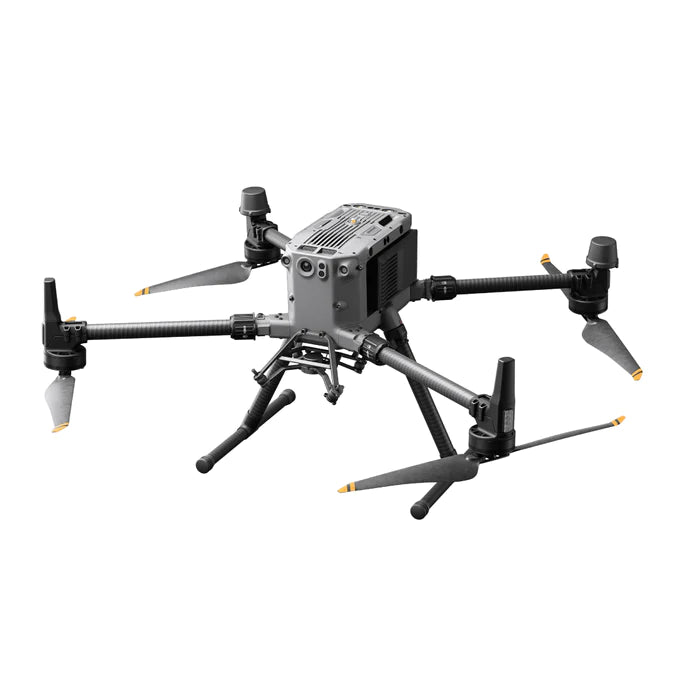

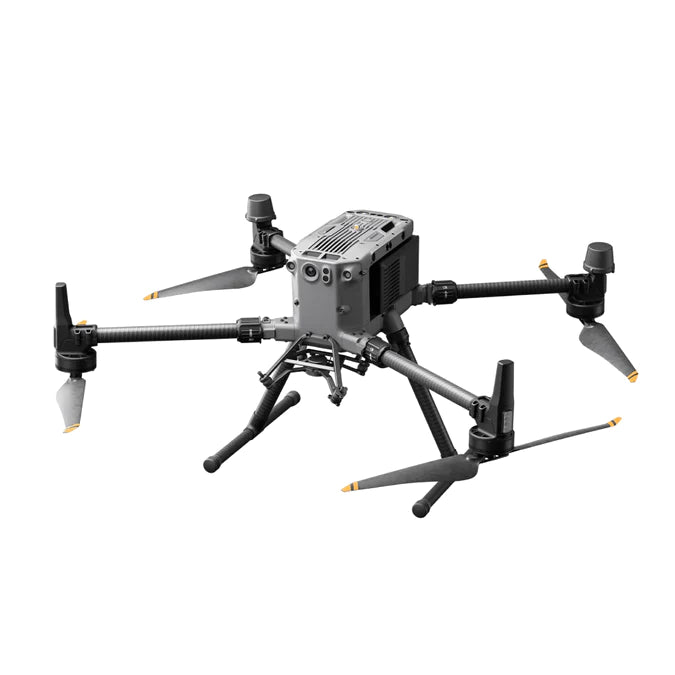

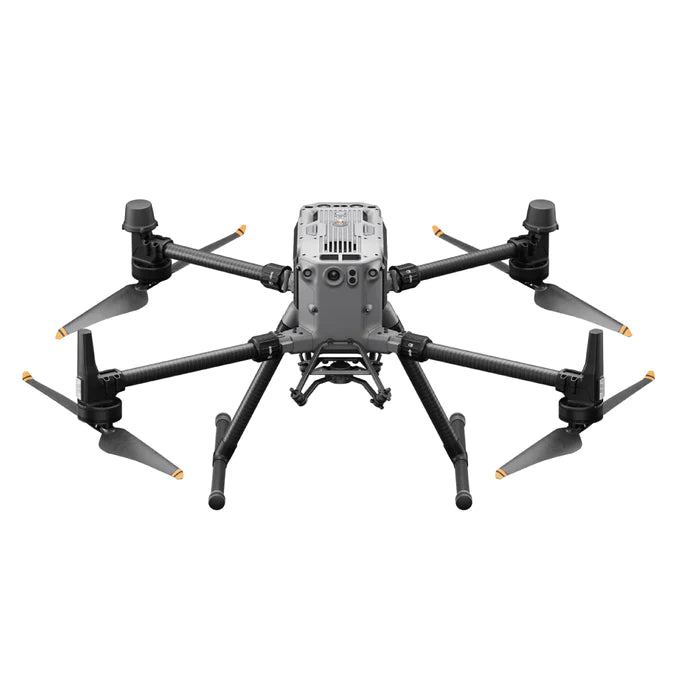

DJI Matrice 350 RTK
Description
Fully Powered to Forge Ahead
EFFORTLESSLY POWERFUL FLIGHT PERFORMANCE
Protection Rating: IP55
Max Payload: 2.7 kg
Max Flight Altitude: 7000 m
Max Wind Speed Resistance:12 m/s
Operating Temperature: -20° to 50° C (-4° to 122° F)
NEW CONTROL EXPERIENCE
DJI RC PLUS
Equipped with a 7-inch high-bright screen, DJI RC Plus supports Dual Operator Mode and comes with a standard WB37 external battery that offers an operating time of up to six hours, meeting various operation needs.
BUILT READY FOR HARSH ENVIRONMENTS
IP54 rated, DJI RC Plus is dustproof and waterproof to operate reliably in bad weather. The operating temperature is -20° to 50° C (-4° to 122° F), supporting around-the-clock operation even in severely hot or cold environments.
SMOOTH AND EFFICIENT CONTROL
There are several buttons and dials on the front, back, and top of the remote controller for fast operation. Button functions can be customized to fit users’ habits and deliver an intuitive and flexible experience.
DJI PILOT 2
The DJI Pilot 2 app has been further optimized to clearly present the mission type and flight status. Easy and smooth control of the aircraft and payloads facilitates more efficient operation.
UPGRADED BATTERY SYSTEM
NEW DUAL-BATTERY SYSTEM
The Matrice 350 RTK is equipped with a new TB65 dual-battery system, which supports battery hot swapping and allows for multiple flights without powering off. The battery can be charged up to 400 cycles, reducing the cost of a single flight.
NEXT-GEN INTELLIGENT BATTERY STATION
The new BS65 Intelligent Battery Station provides a one-stop solution for battery charging, storage, and transport.
ENHANCED FLIGHT SAFETY
Arm Lock Indicator - The Matrice 350 RTK adds a new arm lock detection function to avoid the risk of unlocked arm sleeves, allowing you to focus on flight with more peace of mind.
Night-Vision FPV Camera - Thanks to its excellent night vision capabilities, the FPV camera can clearly present the surroundings and obstacles during flight at night. It works in tandem with the PinPoint function to provide better navigation for safe flight, assisting in more confident operation at night.
6-Directional Sensing & Positioning - The Matrice 350 RTK is designed with a six-directional binocular vision system and an infrared sensing system for six-directional awareness, positioning, and obstacle-sensing capabilities, providing comprehensive protection during flight.
CSM Radar - With the CSM Radar installed, Matrice 350 RTK can detect subtle obstacles upward or within the horizontal 360° range and avoid them in time. The effective detection range is up to 30 m, further improving flight safety.
Multi-Layered Redundancy Design - Both the aircraft system and the sensor system of the Matrice 350 RTK adopt a redundancy design to ensure flight safety, allowing you to cope with harsh operating environments more confidently.
POWERFUL PAYLOADS
The Matrice 350 RTK supports a single downward gimbal, dual downward gimbals, and single upward gimbal, and has an E-Port open interface. With a max payload capacity of 2.7 kg, the aircraft can carry up to three payloads simultaneously, meeting the needs of different operation scenarios like public safety, inspection, and mapping.
ZENMUSE H20 SERIES
The four-sensor system of zoom camera, wide camera, thermal camera, and laser rangefinder works together, supplemented by advanced intelligent algorithms, to deliver outstanding sensing and imaging performance.
ZENMUSE H20N
Zenmuse H20N integrates starlight sensors into its zoom and wide-angle cameras. Pair this with dual zoom thermal cameras and a laser rangefinder, and you have a versatile hybrid payload that rises to the occasion.
ZENMUSE P1
Zenmuse P1 integrates a full-frame sensor with interchangeable fixed-focus lenses on a 3-axis stabilized gimbal. Designed for photogrammetry flight missions, it takes efficiency and accuracy to a whole new level.
ZENMUSE L1
Zenmuse L1 integrates a Livox Lidar module, a high-accuracy IMU, and a mapping camera. When used with the flight platform, it forms a complete solution that gives you real-time 3D data throughout the day, efficiently capturing the details of complex structures and delivering highly accurate reconstructed models.
THIRD-PARTY PAYLOADS
Customized payloads like gas detectors, loudspeakers, and multispectral sensors can be combined with Matrice 350 RTK through DJI Payload SDK to expand application fields.
INTELLIGENT OPERATION
HIGH-PRECISION MAPPING
Matrice 350 RTK supports Waypoint, Mapping, Oblique, and Linear Flight missions. You can use Terrain Follow or Smart Oblique for efficient data collection. Together with DJI Terra, you can quickly obtain HD 2D and 3D digital results, enabling high-precision and high-efficiency mapping operation.
AIR-TO-GROUND COORDINATION
With functions like the high-precision PinPoint and cloud-based real-time mapping, the Matrice 350 RTK can link the air, ground, and cloud together. After the aircraft completes image collection, DJI FlightHub 2 can quickly model the operation site and transmit command information to the aircraft and ground operators. Both the remote controller and FlightHub 2 support point, line, surface drawing, and real-time uploading, and can cooperate with the aircraft to live stream the real-time operation view, breaking through communication barriers for air-to-ground collaborative operation.
AUTOMATED PRECISION INSPECTION
Through Live Mission Recording, the Matrice 350 RTK can generate and store flight route files that can be used at any time to realize automated operation and make repetitive inspection no longer time-consuming or effort-consuming. When using AI Spot-Check, the Matrice 350 RTK supports automatic framing and manual adjustment of subjects to improve the accuracy of repeated shooting and the quality of inspection operation.

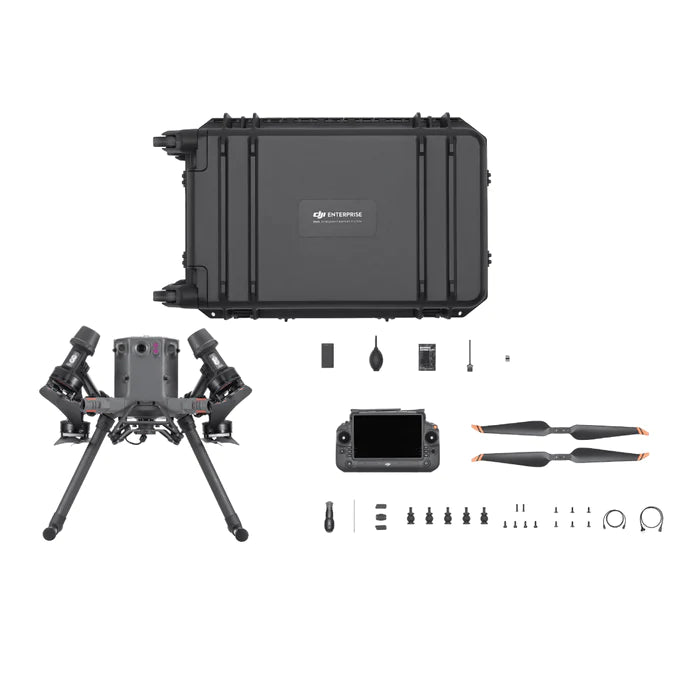

EXTENSIVE ACCESSORIES
DJI RC PLUS
DJI RC Plus has a 7-inch screen with a brightness of up to 1,200 nits as well as multiple buttons, delivering a smooth control experience. It comes with a standard WB37 external battery and supports battery hot swapping. It can operate for up to 6 hours when combining internal and external batteries for use.
CSM RADAR
The CSM Radar can be mounted on top of the drone to further ensure flight safety. The effective detection range can reach 30 m. The radar can accurately detect subtle obstacles upward or within the horizontal 360° range to avoid them in time.
BS65 INTELLIGENT BATTERY STATION
The battery station provides a one-stop solution for battery charging, storage, and transport. The new Storage Mode and Ready-to-Fly Mode improve charging efficiency and extend the battery life. The new design of 360°-movement wheels facilitates more convenient transportation and transitions.
HIGH-ALTITUDE LOW-NOISE PROPELLERS
The high-altitude low-noise propellers guarantee flight performance at high altitudes of 3,000-7,000 m, and the noise of the blades is reduced by 2 decibels compared with the standard 2110s propellers.
TB65 INTELLIGENT FLIGHT BATTERY
The TB65 Intelligent Flight Battery adopts high-performance and high-energy cells and can be charged up to 400 cycles, reducing the cost for a single flight. Meanwhile, it has enhanced heat dissipation performance and an auto-heating system.
USER DATA SECURITY
- Media Data Encryption
- Local Data Mode
- One-Tap Clear All Device Data
- AES-256 Video Transmission Encryption
- Cloud API
