DJI Dock 2 Overseas Edition
Description

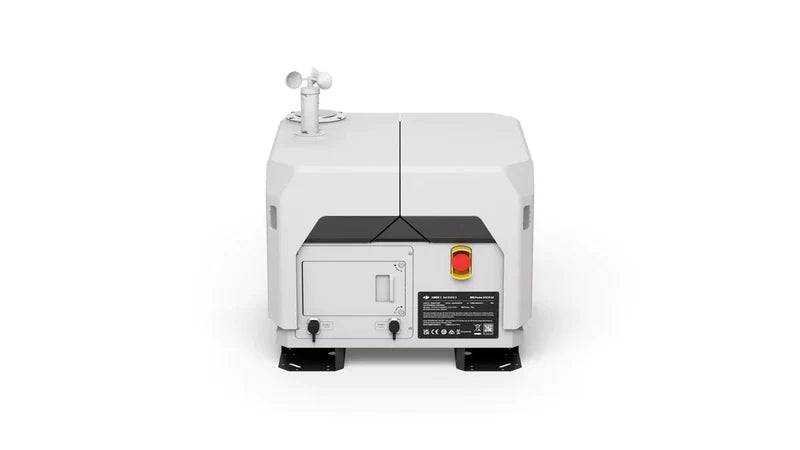

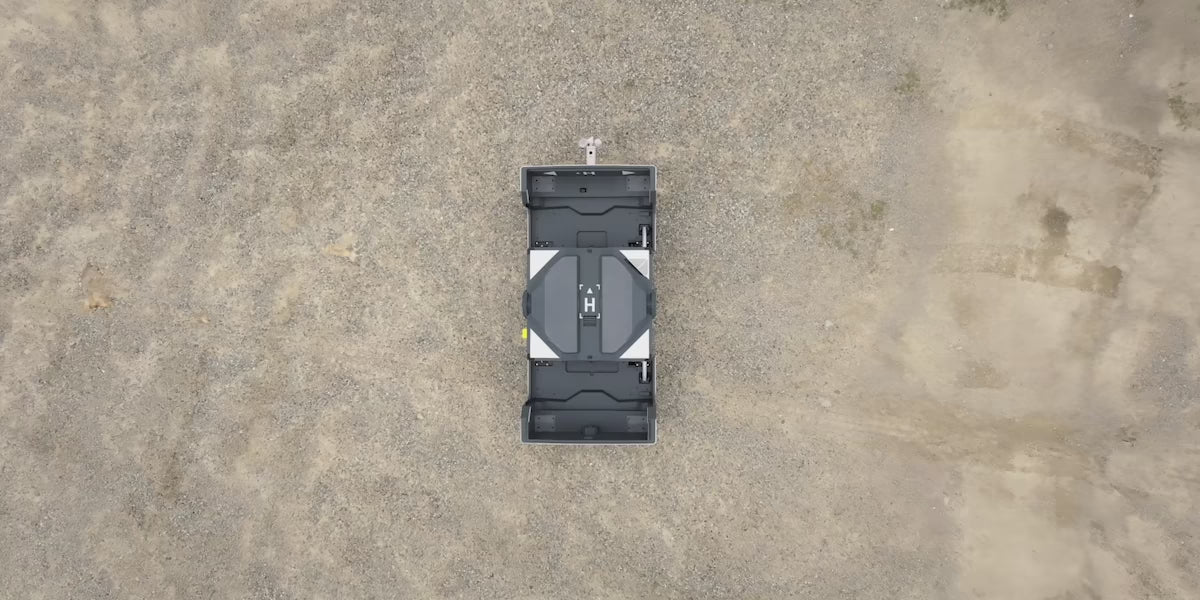

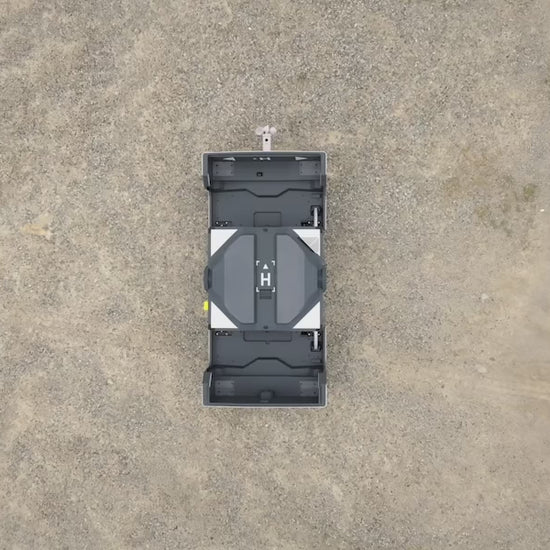

Dock 2 is an advanced docking station tailored specifically for the Matrice 3D/3TD drone series. This compact system is designed to be easily transported and deployed by two individuals, significantly reducing installation time and costs across different locations. With a rugged IP55-rated build, Dock 2 ensures reliable operation in challenging environments, complemented by integrated environmental sensors for real-time weather monitoring and risk assessment. It features rapid charging capabilities, efficiently powering the drone from 20% to 90% in just 32 minutes, and facilitates quick takeoff within 45 seconds, maximizing operational efficiency. Moreover, DJI Dock 2 integrates cloud-based modeling and AI-driven functionalities, supporting precise 3D mapping and enhancing operational safety in diverse industries.
DJI Dock 2 - Technical Specifications
| Category | Specification |
|---|---|
| Product Name | DJI Dock 2 |
| Total Weight | 34 kg (without aircraft) |
| Dimensions (Dock Cover Opened) | 1228×583×412 mm (L×W×H) |
| Dimensions (Dock Cover Closed) | 570×583×465 mm (L×W×H) |
| Input Voltage | 100-240 V (AC), 50/60 Hz |
| Input Power | Max 1000 W |
| Operating Temperature | -25° to 45° C (-13° to 113° F) |
| Ingress Protection Rating | IP55 |
| Number of Drones Accommodated | 1 |
| Max Allowable Landing Wind Speed | 8 m/s |
| Max Operating Altitude | 4000 m |
| RTK Base Station Satellite Reception | Simultaneously receive GPS, BeiDou2, BeiDou3, GLONASS, Galileo signals |
| RTK Base Station Positioning Accuracy | Horizontal: 1 cm + 1 ppm (RMS) Vertical: 2 cm + 1 ppm (RMS) |
| Output Voltage (for Charging) | 28 V DC |
| Charging Time | 32 minutes (from 20% to 90%) |
| Video Transmission System | O3 Enterprise |
| Video Transmission Frequency | 2.4000-2.4835 GHz 5.725-5.850 GHz |
| Video Transmission Antenna | Built-in 4 antennas, 2T4R, supports intelligent switching |
| Transmitter Power (EIRP) | 2.4 GHz: < 33 dBm (FCC); < 20 dBm (CE/SRRC/MIC) 5.8 GHz: < 33 dBm (FCC); < 14 dBm (CE); < 23 dBm (SRRC) |
| Air Conditioning Operating Voltage | 28 V DC |
| Air Conditioning Type | TEC Air Conditioning |
| Backup Battery Capacity | 12 Ah |
| Backup Battery Output Voltage | 12 V |
| Backup Battery Type | Lead-acid battery |
| Backup Battery Life | 5 hours |
